EGA/CGA Video Converter

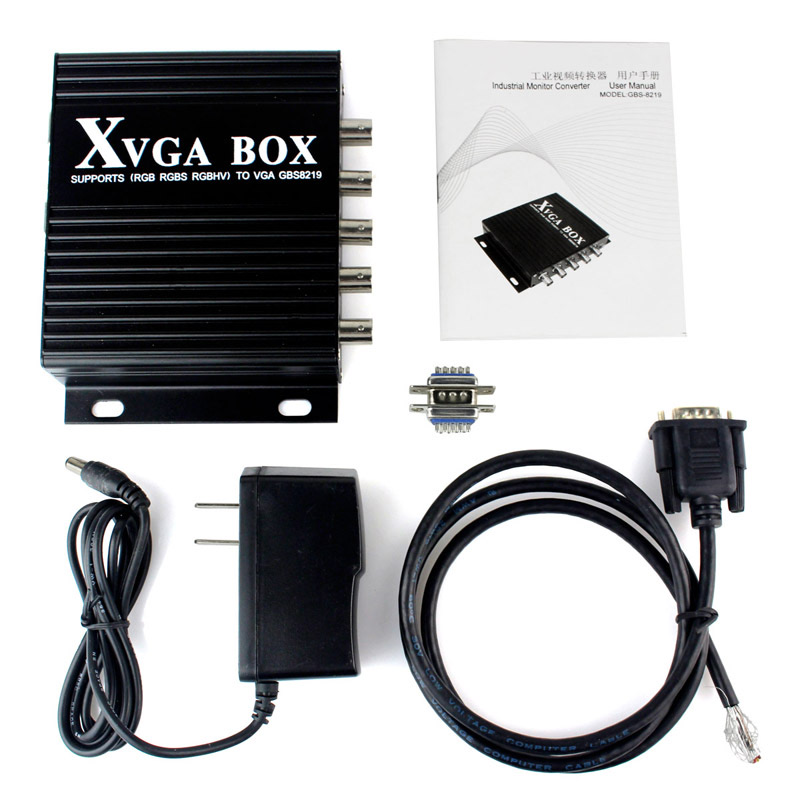

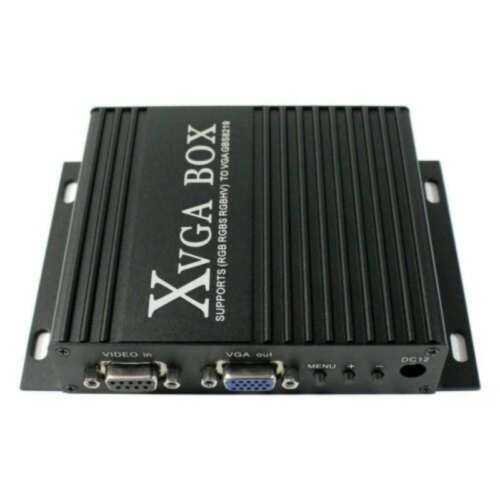

  • Product description: EGA/CGA Monitor Video Converter
  • INQUIRY

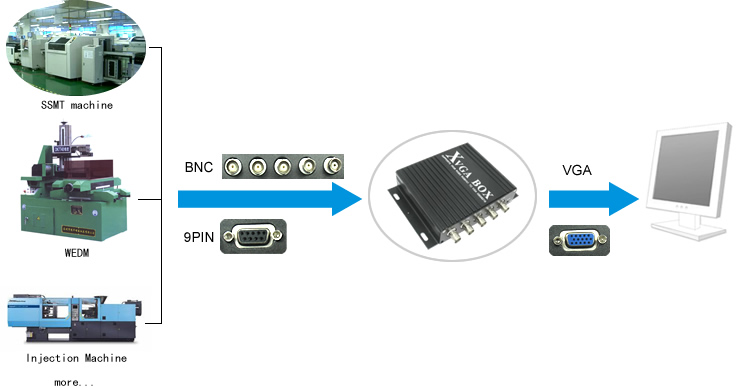

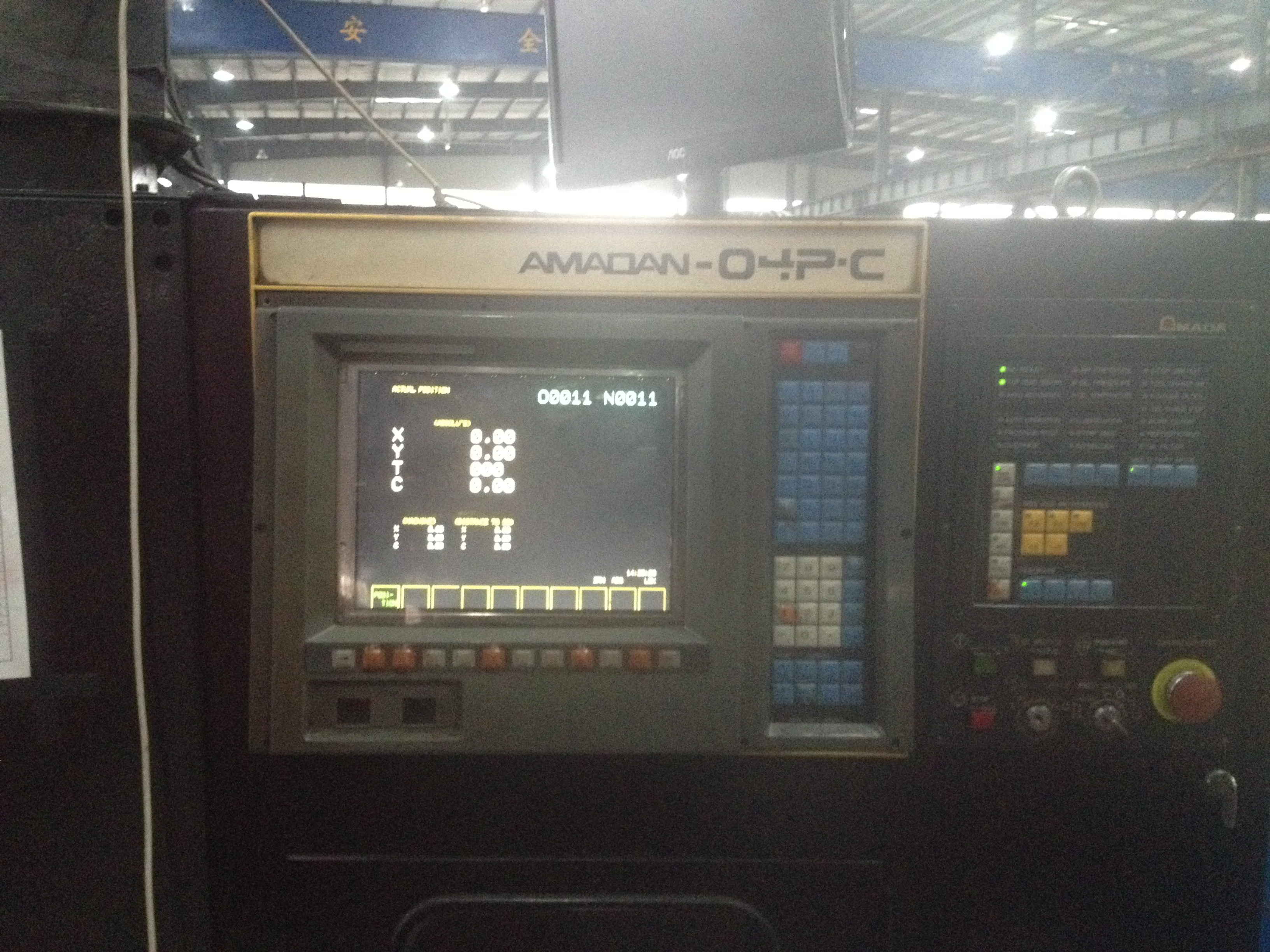

Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display.


Feature:

- All of our items are Brand New

- Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized

- Support RGB and YPbPr

- Support Interlaced Scanning and Line by Line Scanning

- Support Vertical Resolution from line200 to line 600 automatically recognized

- Support variable Horizontal Resolution automatically recognized

- Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized

- Output resolution: 800*600/60Hz standard VGA or custom-resolution


Specification:

- Input Signals: MDA, CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr

- Input Interface: 9pin,3pin,6pin,14pin,20pin,25pin

- Input Horizontal Frequency Rate(H): 12kHz to 40kHz automatically recognized

- Output Supports: D-15pin standard VGA/SVGA,Resolution:800*600/60Hz 640*480 /60Hz

- Output Interface: D-Sub 15 PIN standard VGA port

- Power: DC 12V 1.0A

- Model: GBS 8219

- Color: Black

- Weight: 310g /11oz

- Dimension: 148*101*28 mm
